Closed Polyline (2D)

General

• Draw a closed polyline by clicking points. When you select the Confirm function, the program automatically adds a line between the first and last points.



• You can draw a horizontal rectangle if you click only two points before the Confirm function.



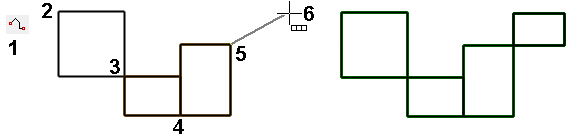

• You can draw rectangles in chain if you turn off the auxiliary function Continuous line.



Draw a closed polyline

1. Select Drafting | Lines | Line > Closed Polyline.
2. Select the line properties, if necessary.

   Line Properties

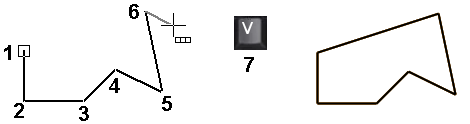

3. Draw a line chain by clicking 2...n points.
   • If you click only two points, a rectangle is drawn.
4. Select Confirm.
