Rounded Closed Polyline (2D)

General

  • Draw a closed rounded polyline by clicking points. When you select the Confirm function, the program automatically adds a line between the first and last point, marks a corner and asks for the rounding radius of all corners in turn.
  • The program also tells you the possible maximum rounding radius and suggests the previous rounding radius.
  • The program does not accept a rounding radius that is too large, but accepts a rounding radius of zero, i.e. in this case the corner remains sharp.
  • You can draw a horizontal rounded rectangle if you click only two points before the Confirm function.

Draw a rounded closed polyline

  1. Select Drafting | Lines | Closed > Rounded Closed Polyline.
  2. Select the line properties, if necessary.

    Line Properties

  3. Click the points 3...n of the polyline.
  4. Select Confirm. The program tells you the possible maximum rounding radius and suggests the previous rounding radius.
  5. Enter the rounding radius separately for each corner.

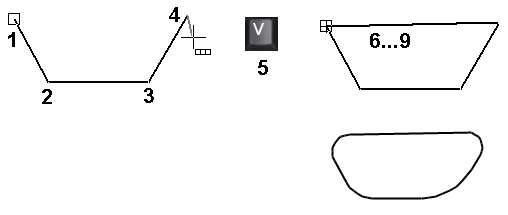

Example

  • 1... 4: The points of the rounded polyline are clicked.
  • 5: Clicking the points of the rounded polyline is finished with the function Confirm.
  • 6...9: Rounding radii for all four corners have been entered.
