Stretch Profile to a Line

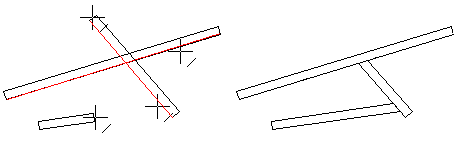

This function can be used to either stretch a profile to a selected line or shorten a profile by clipping it with the line.

1. On the tab, in the Mechanical group, select Profiles, and select Stretch Profile to a Line.
2. Click the line.
3. Select the profile to be stretched or shortened by clicking the profile's end line.
4. Select Confirm.
