Dynamic MBD Markings

General

• The dynamic MBD markings feature enables a mode where the appropriate annotation view is automatically activated based on the selected viewing direction.

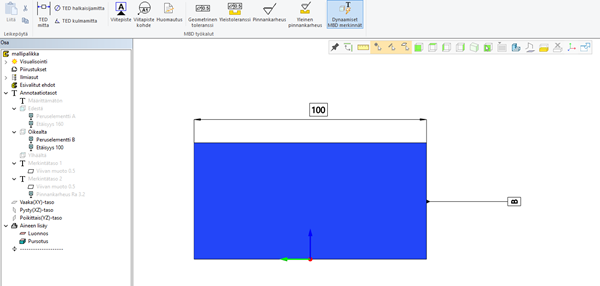

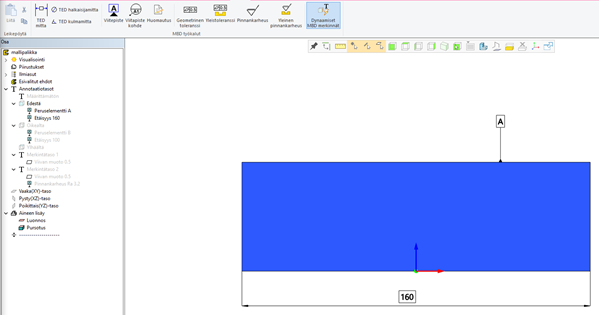

• When active, the mode activates the first annotation view that is within 0.5 radians of the viewing direction. Here, the model is viewed first from the front and then from the right, the activated views are shown in the tree:

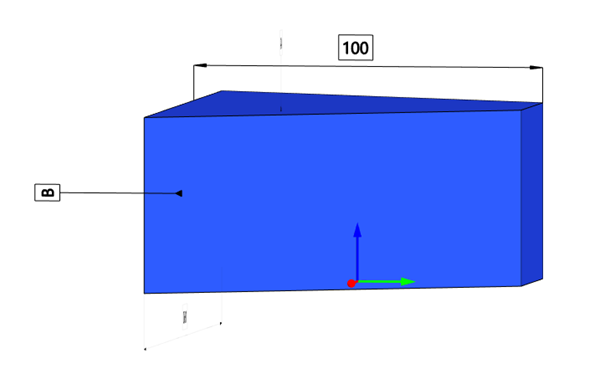

  During rotation annotations in non-active views are shown dimmed:
