Table of Standards

You can collect the standards used in MBD markups of a model in a table.

3D functions

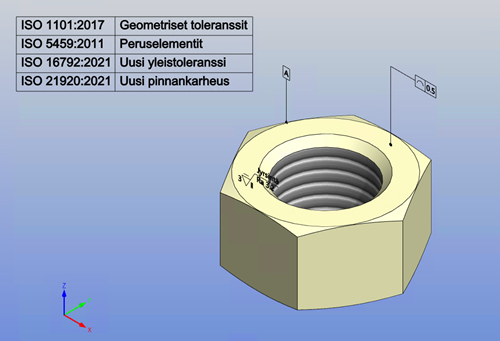

The table collects all standards used in the MBD markings of the model that exist at the time the table is inserted. Rows are sorted by standard number.

A standard table is added to the screen.

2D functions

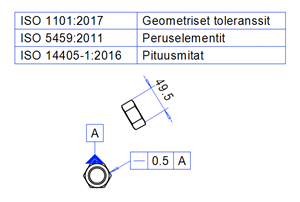

2D follows the same logic as 3D. 2D standards tables are added from the ribbon and updated automatically when the drawing is updated by pressing CTRL + U.

Note: The 3D table can be updated using the update button on the ribbon.

Note: 2D if all notes are deleted, an empty table with two cells remains.
