MBD Rules and Notes

General

Location tolerances always require a dimension, otherwise there will be a warning. The same applies to symmetry.

Examples of warnings

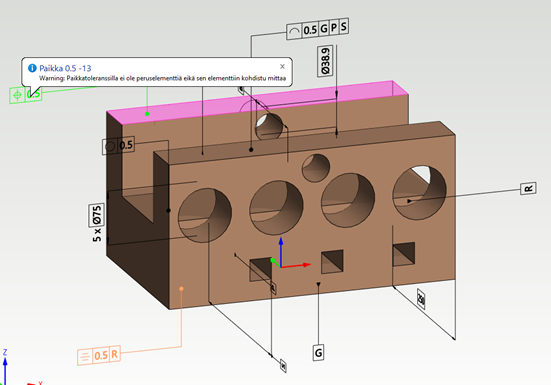

Location tolerance, basic element and dimension:

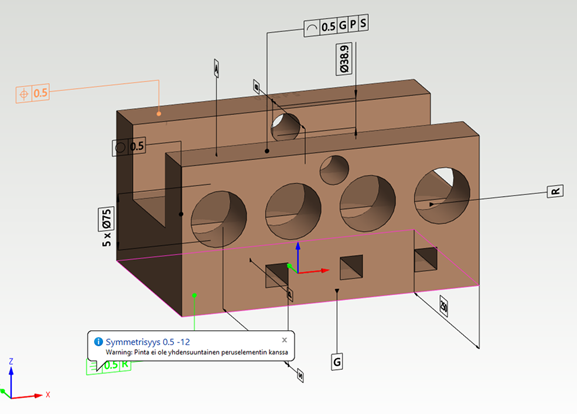

Symmetry warning:
