Closed Polyline (2D)

General

  • Draw a closed polyline by clicking points. When you select the Confirm function, the program automatically adds a line between the first and last points.

  • You can draw a horizontal rectangle if you click only two points before the Confirm function.

  • You can draw rectangles in chain if you turn off the auxiliary function Continuous line.

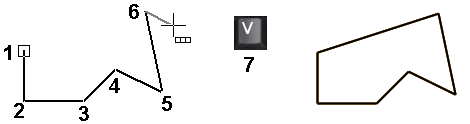

Draw a closed polyline

  1. Select Drawing | Lines | Smart > Closed Polyline.
  2. Select the line properties, if necessary.

    Line Properties

  3. Draw a line chain by clicking 2...n points.
    • If you click only two points, a rectangle is drawn.
  4. Select Confirm.
