Example of Mirroring in an Assembly

As an example, phases 1-3.

Phase 1

• Mirror an assembly KR_PEIL15
• Mirror symbol is visible only, in the mirrored assembly KR_PEIL15.L

Phase 2

• Mirrored assembly, KR_PEIL15.L, is saved as a new assembly KR_PEIL18.
• The mirror symbol is displayed below the assembly, not symmetric part and sub assembly.

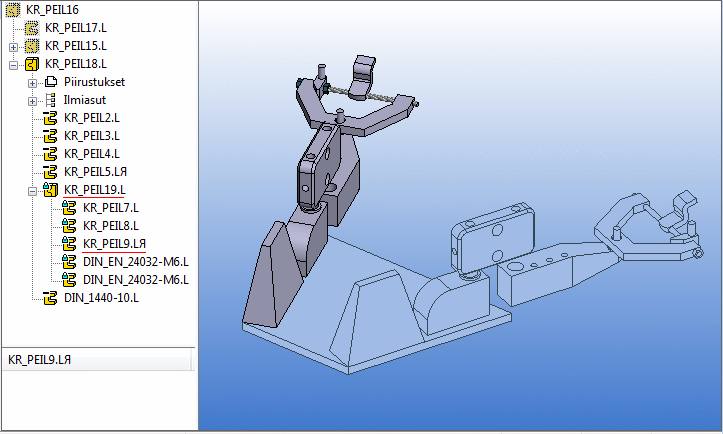

Phase 3

• Mirrored subassembly is saved as a new document, KR_PEIL19
• The mirror symbol displays as asymmetric in the part KR_PEIL9, and it is saved as a new document.
